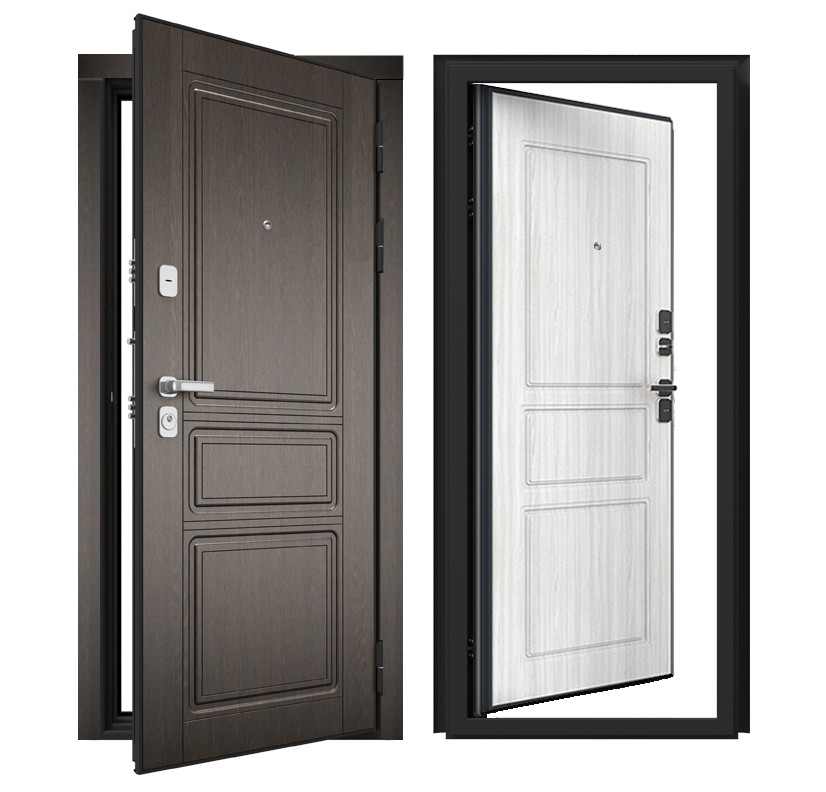

16mm Internal MDF / 16mm External MDF.
Rebated Pipe Frame.
0,8 mm Metal Sheet of the Door Leaf.
Thickness of the Door Leaf: 85 mm.
Best thermal and acoustic insulation.
Door lock brand: Аpecs.
MDF panelling (external / internal) to choose
PVC film colour (external / internal) to choose
More information about the F-3 door type
| F-3 | 16 mm MDF/16 mm MDF | |
| Frame | Frame type | Door Frame (60х40х1,5 mm pipe) |
| Rebate (40х60х1,0 mm pipe) | ||
| Frame thickness | 100 мм | |
| Powder Coating (RAL) | Powder paint to choose | |
| Door leaf | Door leaf | 49,5х1,8 mm Z-profile |
| Thickness of the door leaf | 85 mm | |
| Metal Sheet | 0.8 mm | |
| Stiffening Rib (U-profiles made of 1,0 mm sheet metal) | 3 pcs | |
| Thermal and acoustic insulation | Mineral Wool | |
| Door Seal (2 circuit) | Euro Е,V | |
| MDF Panelling (external/internal) | 16 mm/16 mm | |
| PVC Film of the external MDF panelling | to choose | |
| PVC Film of the internal MDF panelling | to choose | |
| Milling of the external MDF panelling | to choose | |
| Milling of the internal MDF panelling | to choose | |
| Locks and Fittings | Hinges (20х140) | 3 pcs |
| Anti-cuts | 2 pcs | |
| Platband with hidden fastening (thickness/width) | 16 mm/80 mm | |
| Eye Veiwer | yes | |
| Upper Lock | Аpecs T-57 or analogue | |
| Lower Lock | Аpecs T-52 or analogue | |
| Handle | on the socket and the armor plate is recessed | |
| Lock Cylinder | Euro Thumbturn Cylinder |
16mm Internal MDF / 16mm External MDF.
Rebated Frame (3 Rebates)
Door Leaf is a whole-bent profile made of 1.8 mm Metal Sheet.
Thickness of the Door Leaf: 115 mm.
Best thermal and acoustic insulation.
Door lock brand: Securemme.
MDF panelling (external / internal) to choose
PVC film colour (external / internal) to choose
More information about the F-10 door type
| F-10 | 16 mm MDF/16 mm MDF | Rebated Frame (3 Rebates) |
| Frame | Frame type | Whole-bent profile made of 1.8 mm Metal Sheet |
| Frame thickness | 120 mm | |
| Powder Coating (RAL) | 7024 | |
| Door leaf | Door leaf | Whole-bent profile made of 1.8 mm Metal Sheet |
| Thickness of the door leaf | 115 mm | |
| Metal Sheet | 1 mm | |
| Stiffening Rib (U-profiles made of 1,0 mm sheet metal) | 3 pcs | |
| Thermal and acoustic insulation | Mineral Wool | |
| Door Seal (2 circuit) | Euro Е,V | |
| MDF Panelling (external/internal) | 16 mm/16 mm | |
| PVC Film of the external MDF panelling | to choose | |
| PVC Film of the internal MDF panelling | to choose | |
| Milling of the external MDF panelling | to choose | |
| Milling of the internal MDF panelling | to choose | |
| Locks and Fittings | Hinges (20х100) | 3 pcs |
| Platband with hidden fastening (thickness/width) | 20 mm/80 mm | |
| Eye Veiwer | yes | |
| Upper Lock | Securemme 2019 | |
| Lower Lock (monoblock) | Securemme 2433 | |
| Handle | on the socket and the armor plate is recessed | |
| Lock Cylinder | Euro Thumbturn Cylinder (Securemme К-2) | |
| Anti-cuts | 2 pcs | |
| Door Latch | 1 pc | |
| Eccentric | 1 pc | |
| Additionally | Threshold and 10 mm MDF end bar (PVC Film of the internal MDF panelling) |

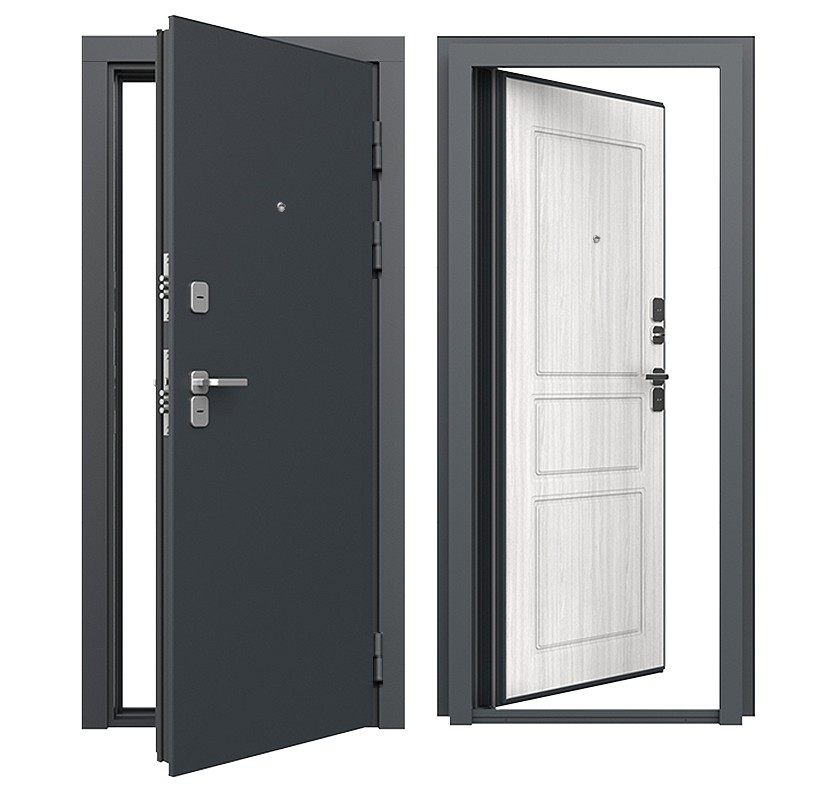

Outer side is a 1.5 mm Metal Sheet (RAL painting, color of choice).
Rebated Pipe Frame.
Thickness of the Door Leaf: 70 mm.
16mm Internal MDF.
Metal Platband.
Best thermal and acoustic insulation.
Door lock brand: Аvers, Аpecs.
MDF panelling (internal) to choose
PVC film colour (internal) to choose
More information about the F-4 door type
| F-4 | Metal / 16 mm MDF | |
| Frame | Frame type | Door Frame (60х40х1,2 mm pipe) |
| Rebate (25х50х1,0 mm pipe) | ||
| Frame thickness | 85 mm | |
| Powder Coating (RAL) | Powder paint to choose | |
| Door leaf | Door leaf | 50х25х1,0 mm pipe |
| Thickness of the door leaf | 70 mm | |
| Metal Sheet (external) | 1,5 mm | |
| Powder Coating (external) | Powder paint | |
| Stiffening Rib (Z-profiles) | 2 pcs | |
| Thermal and acoustic insulation | Mineral Wool | |
| Door Seal (2 circuit) | Euro V | |
| MDF Panelling (internal). | 16 mm | |
| PVC Film of the internal MDF panelling | to choose | |
| Milling of the internal MDF panelling | to choose | |
| Locks and Fittings | Hinges (20х100) | 3 pcs |
| Anti-cuts | 2 pcs | |
| Platband with hidden fastening (thickness/width) | 1,0 mm/70 mm | |
| Eye Veiwer | yes/no | |
| Upper Lock | Аvers R35 or analogue | |
| Lower Lock | Аpecs T-52 or analogue | |
| Handle | on the socket and the armor plate is recessed | |
| Lock Cylinder | Euro Thumbturn Cylinder |
